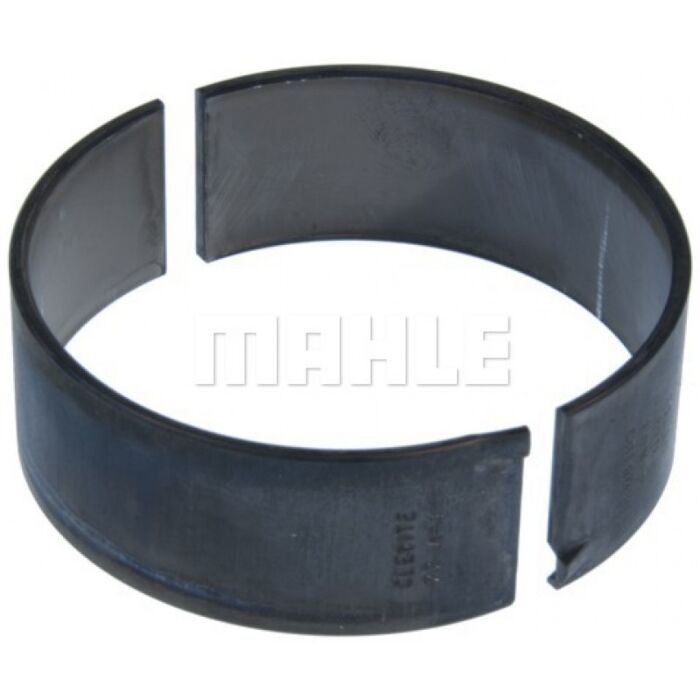

Rod Bearings - RACE Series | 01-11 Chevy 6.6L Duramax

Rod Bearings - RACE Series | 01-11 Chevy 6.6L Duramax Zoom

Rod Bearings - RACE Series | 01-11 Chevy 6.6L Duramax

Rod Bearings - RACE Series | 01-11 Chevy 6.6L Duramax

225.7500

In stock

Regular Price: $248.25

Now only:
$225.75

Manufacturer: Mahle
Model: CB-1805H
Truck Applications: Chevy/GMC Duramax 2001-04 LB7, Chevy/GMC Duramax 2004.5-05 LLY, Chevy/GMC Duramax 2006-07 LBZ, Chevy/GMC Duramax 2007.5-10 LMM, Chevy/GMC Duramax 2011-17 LML/LGH
Shipping Weight: 2.0000
Rod Bearings - RACE Series | 01-11 Chevy 6.6L Duramax

* Required Fields

Product Description

Details

CB-1805H-STD

Specifications:

Material TM-77
Min. Std. Shaft Diameter 2.4764"
62.9006MM
Max. Std. Shaft Diameter 2.4772"
62.9209MM
Min. Vert. Oil Clearance .0010"
0.0254MM
Max. Vert. Oil Clearance .0034"
0.0864MM
Max. Wall .0794"
2.0168MM
Min. Brg. O.D. or Housing Bore 2.6372"
66.9849MM
Max. Brg. O.D. or Housing Bore 2.6378"
67.0001MM
Max. Length .9340"
23.7236MM

Complete Set Of 8

CB-1805HX

Specifications:

Material TM-77
Min. Std. Shaft Diameter 2.4764"
62.9006MM
Max. Std. Shaft Diameter 2.4772"
62.9209MM
Min. Vert. Oil Clearance .0020"
0.0508MM
Max. Vert. Oil Clearance .0044"
0.1118MM
Max. Wall .0789"
2.0041MM
Min. Brg. O.D. or Housing Bore 2.6372"
66.9849MM
Max. Brg. O.D. or Housing Bore 2.6378"
67.0001MM
Max. Length .9340"
23.7236MM

Complete Set Of 8

CB-1805H-026

Specifications:

Material TM-77
Min. Std. Shaft Diameter 2.4764"
62.9006MM
Max. Std. Shaft Diameter 2.4772"
62.9209MM
Min. Vert. Oil Clearance .0010"
0.0254MM
Max. Vert. Oil Clearance .0034"
0.0864MM
Max. Wall .0794"
2.0168MM
Min. Brg. O.D. or Housing Bore 2.6372"
66.9849MM
Max. Brg. O.D. or Housing Bore 2.6378"
67.0001MM
Max. Length .9340"
23.7236MM

Complete Set Of 8

CB-1805H-25

Specifications:

Material TM-77
Min. Std. Shaft Diameter 2.4764"
62.9006MM
Max. Std. Shaft Diameter 2.4772"
62.9209MM
Min. Vert. Oil Clearance .0010"
0.0254MM
Max. Vert. Oil Clearance .0034"
0.0864MM
Max. Wall .0794"
2.0168MM
Min. Brg. O.D. or Housing Bore 2.6372"
66.9849MM
Max. Brg. O.D. or Housing Bore 2.6378"
67.0001MM
Max. Length .9340"
23.7236MM

Complete Set Of 8
