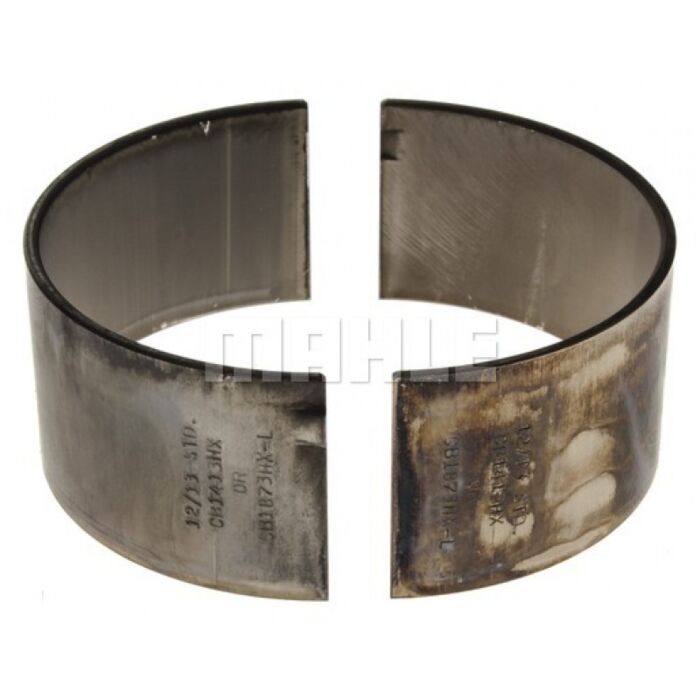

Rod Bearings - RACE series | 89-14 Dodge 5.9L & 6.7L Cummins

Rod Bearings - RACE series | 89-14 Dodge 5.9L & 6.7L Cummins Zoom

Rod Bearings - RACE series | 89-14 Dodge 5.9L & 6.7L Cummins

Rod Bearings - RACE series | 89-14 Dodge 5.9L & 6.7L Cummins

117.86

In stock

$117.86
Manufacturer: Mahle
Model: CB-1413H
Truck Applications: Dodge 1st Generation 1988-93, Dodge 12V 1994-98, Dodge 24V 1998.5-02, Dodge 24V CR 2003-07, Dodge 6.7 2007-09, Dodge 6.7L 2010-12, Dodge 6.7L 2013-2016
Shipping Weight: 2.0000
Rod Bearings - RACE series | 89-14 Dodge 5.9L & 6.7L Cummins

* Required Fields

Product Description

Details

CB-1413H-STD

Specifications:

Material TM-112
Min. Std. Shaft Diameter 2.7160"
68.9864MM
Max. Std. Shaft Diameter 2.7170"
69.0118MM
Min. Vert. Oil Clearance 0.0015"
0.0381MM
Max. Vert. Oil Clearance 0.0045"
0.1143MM
Max. Wall 0.0775"
1.9685MM
Min. Brg. O.D. or Housing Bore 2.8735"
72.9869MM
Max. Brg. O.D. or Housing Bore 2.8745"
73.0123MM
Max. Length 1.2250"
31.1150MM

CB-1413HX

Specifications:

Material TM-112
Min. Std. Shaft Diameter 2.7160"
68.9864MM
Max. Std. Shaft Diameter 2.7170"
69.0118MM
Min. Vert. Oil Clearance 0.0025"
0.0635MM
Max. Vert. Oil Clearance 0.0055"
0.1397MM
Max. Wall 0.0770"
1.9558MM
Min. Brg. O.D. or Housing Bore 2.8735"
72.9869MM
Max. Brg. O.D. or Housing Bore 2.8745"
73.0123MM
Max. Length 1.2250"
31.1150MM

CB-1413H-026

Specifications:

Material TM-112
Min. Std. Shaft Diameter 2.7160"
68.9864MM
Max. Std. Shaft Diameter 2.7170"
69.0118MM
Min. Vert. Oil Clearance 0.0015"
0.0381MM
Max. Vert. Oil Clearance 0.0045"
0.1143MM
Max. Wall 0.0775"
1.9685MM
Min. Brg. O.D. or Housing Bore 2.8735"
72.9869MM
Max. Brg. O.D. or Housing Bore 2.8745"
73.0123MM
Max. Length 1.2250"
31.1150MM

CB-1413H-25

Specifications:

Material TM-112
Min. Std. Shaft Diameter 2.7160"
68.9864MM
Max. Std. Shaft Diameter 2.7170"
69.0118MM
Min. Vert. Oil Clearance 0.0015"
0.0381MM
Max. Vert. Oil Clearance 0.0045"
0.1143MM
Max. Wall 0.0775"
1.9685MM
Min. Brg. O.D. or Housing Bore 2.8735"
72.9869MM
Max. Brg. O.D. or Housing Bore 2.8745"
73.0123MM
Max. Length 1.2250"
31.1150MM

CB-1873H-STD

Specifications:

Material TM-112
Min. Std. Shaft Diameter 2.7160"
68.9864MM
Max. Std. Shaft Diameter 2.7170"
69.0118MM
Min. Vert. Oil Clearance .0015"
0.0381MM
Max. Vert. Oil Clearance .0045"
0.1143MM
Max. Wall .0775"
1.9685MM
Min. Brg. O.D. or Housing Bore 2.8735"
72.9869MM
Max. Brg. O.D. or Housing Bore 2.8745"
73.0123MM
Max. Length 1.2250"
31.1150MM

CB-1873HX

Specifications:

Material TM-112
Min. Std. Shaft Diameter 2.7160"
68.9864MM
Max. Std. Shaft Diameter 2.7170"
69.0118MM
Min. Vert. Oil Clearance .0020"
0.0508MM
Max. Vert. Oil Clearance .0050"
0.1270MM
Max. Wall .0770"
1.9558MM
Min. Brg. O.D. or Housing Bore 2.8735"
72.9869MM
Max. Brg. O.D. or Housing Bore 2.8745"
73.0123MM
Max. Length 1.2250"
31.1150MM

CB-1873H-026

Specifications:

Material TM-112
Min. Std. Shaft Diameter 2.7160"
68.9864MM
Max. Std. Shaft Diameter 2.7170"
69.0118MM
Min. Vert. Oil Clearance .0015"
0.0381MM
Max. Vert. Oil Clearance .0045"
0.1143MM
Max. Wall .0775"
1.9685MM
Min. Brg. O.D. or Housing Bore 2.8735"
72.9869MM
Max. Brg. O.D. or Housing Bore 2.8745"
73.0123MM
Max. Length 1.2250"
31.1150MM

CB-1873H-25

Specifications:

Material TM-112
Min. Std. Shaft Diameter 2.7160"
68.9864MM
Max. Std. Shaft Diameter 2.7170"
69.0118MM
Min. Vert. Oil Clearance .0015"
0.0381MM
Max. Vert. Oil Clearance .0045"
0.1143MM
Max. Wall .0775"
1.9685MM
Min. Brg. O.D. or Housing Bore 2.8735"
72.9869MM
Max. Brg. O.D. or Housing Bore 2.8745"
73.0123MM
Max. Length 1.2250"
31.1150MM
