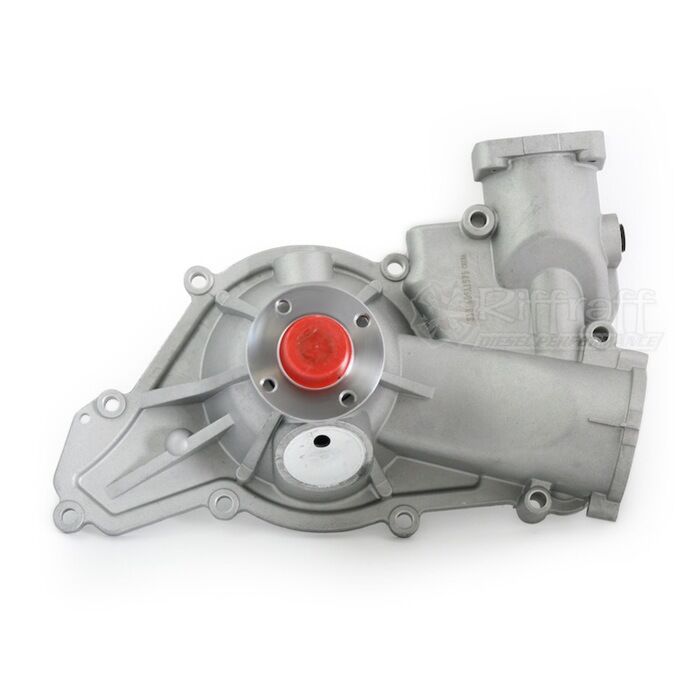

F81Z-8501-FA

MOTORCRAFT: PW-455

APPLICATION: F-250/F-550 1998.5-2003 E Series 1998.5-2003 Excursion 2000-2003

BOM: Pump Assembly Mounting Gasket Inlet O-Ring Gasket

CAST ID: 1831005C22

NOTE: Die-Cast Aluminum w/o Elbow Deep Well Thermostat Housing New Weephole Style Replaces Reman F81Z-8501-ARM

2C3Z-8V501-BA

MOTORCRAFT: PWR-3

APPLICATION: F-250/F-550 1996-1998.5 E Series 1996-1998.5 with one or two piece Inlet Tube

BOM: Pump Assembly Mounting Gasket

CAST ID: 1823423C2 1823611C2

NOTE: Die-Cast Aluminum with a Steel Elbow Deep Well Thermostat Housing. Replaces Reman F6TZ-8V501-AARM and F7TZ-8501-CRM

1U2Z-8V501-CA

MOTORCRAFT: PWR-2

APPLICATION: F-250/F-350 1994-1996 E Series 1994-1996 with one-piece Inlet Tube

BOM: Pump Assembly Mounting Gasket (3) M8X110mm (4) M8X12mm

CAST ID: 1822823C1 or 1818182C3

NOTE: Cast Aluminum with Cast Elbow, or Aluminum Pump, Small Bearing, with Two-Piece Inlet Tube Old Weep Hole Style Replaces F5TZ-8501-CRM (1994) Aluminum Pump with Two-Piece Inlet Tube and F4TZ-8V501-AARM Reman Water Pumps
