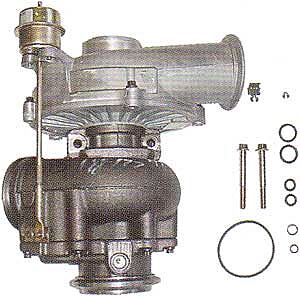

F81Z-6K682-BARM

APPLICATION: F-250/F-350 w/EBP Valve 1999.5-2003 Excursion w/EBP Valve 2000-2003

BOM: Turbocharger Assembly (2) Larger Thick O-Rings (2) Large Thick O-Rings (2) Small Thick O-Rings (1) Small Thin O-Rings (1) Smaller Thin O-Rings (2) M10-1.5 X 80mm (1) Clip (1) Small Snap Ring/Clip

CAST ID: 1831457C91/702014-0009

NOTE: Includes Wastegate, EBP Valve, and Large Base

F81Z-6K682-CARM

APPLICATION: F-250/F-350 w/o EBP Valve 1999.5

BOM: Turbocharger Assembly (2) Larger Thick O-Rings (2) Large Thick O-Rings (2) Small Thick O-Rings (1) Small Thin O-Rings (1) Smaller Thin O-Rings (2) M10-1.5 X 80mm (1) Clip (1) Small Snap Ring/Clip

CAST ID: 1831660C91/710134-0009

NOTE: Includes Wastegate and Large Base w/o EBP Valve

5C3Z-6V682-ARM

MOTORCRAFT: TC-3-RM

APPLICATION: F-250/F-550 1998.5-1999.5

BOM: Turbocharger Assembly (2) Large Thick O-Rings (2) Small Thick O-Rings (1) Orange Gasket (7) Mi-1.25 X 20mm (1) Clip

CAST ID: 991966C91/471128-0009

NOTE: Includes Wastegate and Large Base w/o EBP Valve. Replaces F81Z-6K682-AARM

F4TZ-6VK682-CARM

MOTORCRAFT: TC-2-RM

APPLICATION: F-250/F-350 1994-1998.5 E Series 1994-1998.5

BOM: Turbocharger Assembly (1) Large Thick O-Rings (1) Small Thick O-Rings (1) Large Thin O-Rings (2) M6-1.0 X 12mm (11) M8-1.25 X 20mm (1) Large Thick O-Rings (1) Small Thick O-Rings (1) M6-1.0 X 12mm (3) M8-1.25 X 20mm (1) Exhaust Outlet Gasket (4) M8-1.25 X 50mm (2) M8-1.25 X Nuts (1) Orange Gasket (1) Large Thick O-Rings (1) Small Thick O-Rings

CAST ID: 991934Cal/468485-0004
