Motorcraft EGR Cooler

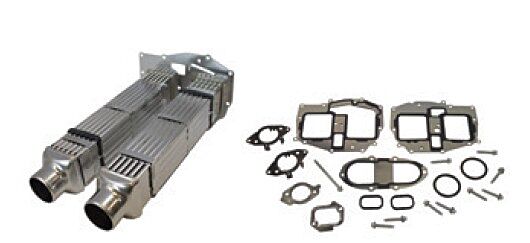

BC3Z-9V425-A

APPLICATION: F-250/F-550 2011-2015

NOTE: 2011-2014 use gasket BC3Z-9P455-B 2015 use gasket FC3Z-9P455-A

FC3Z-9P455-A

APPLICATION: F-250/F-550 2011-2015

NOTE: 2011-2014 use gasket BC3Z-9P455-B 2015 use gasket FC3Z-9P455-A

BC3Z-9P455-B

APPLICATION: F-250/F-550 2011-2015

NOTE: 2011-2014 use gasket BC3Z-9P455-B 2015 use gasket FC3Z-9P455-A

8C3Z-9F464-F

APPLICATION: F-250/F-550 2008-2010

BOM: Cooler Assy, EGR #1 (Qty 1) Screw, Drive Type U (Qty 2) Nut, 1/4-28 UNF Lock (Qty 2)

NOTE: Horizontal Mtg. (EGR Cooler # 1) Replaces 8C3Z-9F464-E

8C3Z-9P456-C

APPLICATION: F-250/F-550 2008-2010

BOM: Cooler, EGR 2 (Qty 1) Nut, 1/4-28 UNF Lock (Qty 3)

NOTE: Vertical Mtg. (EGR Cooler # 2) Replaces 8C3Z-9P456-A

4C3Z-9P456-AJ

APPLICATION: F-250/F-550 2004-2007 F-650/F-750 2004-2007 E Series 2004-2010 Excursion 2004-2005

BOM: Cooler, EGR (Qty 1) Gasket, Cooler Gas Inlet (Qty 1) Coupling Assy, EGR Coolant Inlet (Qty 1) Seal, Front Cover O-Ring (Qty 1) Gasket, EGR Cooler To Manifold (Qty 1) O-Ring #210 (Qty 1) Gasket,Turbo Oil Inlet (Qty 1) O-Ring #210 (Qty 2) Bolt, Flange Head M8x30 (Qty 3) O-Ring #206 (Qty 1) Bolt, Hex Flg M6x20 (Qty 1) Seal, O-Ring (Qty 1)

3C3Z-9P456-B

APPLICATION: F-250/F-550 2003-2004 F-650/F-750 2003-2004 Excursion 2003-2004

BOM: Cooler, EGR (Qty 1) Gasket, Cooler Gas Inlet (Qty 1) Coupling Assy, EGR Coolant Inlet (Qty 1) Seal, Front Cover O-Ring (Qty 1) Gasket, EGR Cooler To Manifold (Qty 1) O-Ring #210 (Qty 1) Gasket,Turbo Oil Inlet (Qty 1) O-Ring #210 (Qty 2) Bolt, Flange Head M8x30 (Qty 3) O-Ring #206 (Qty 1) Bolt, Hex Flg M6x20 (Qty 1)
