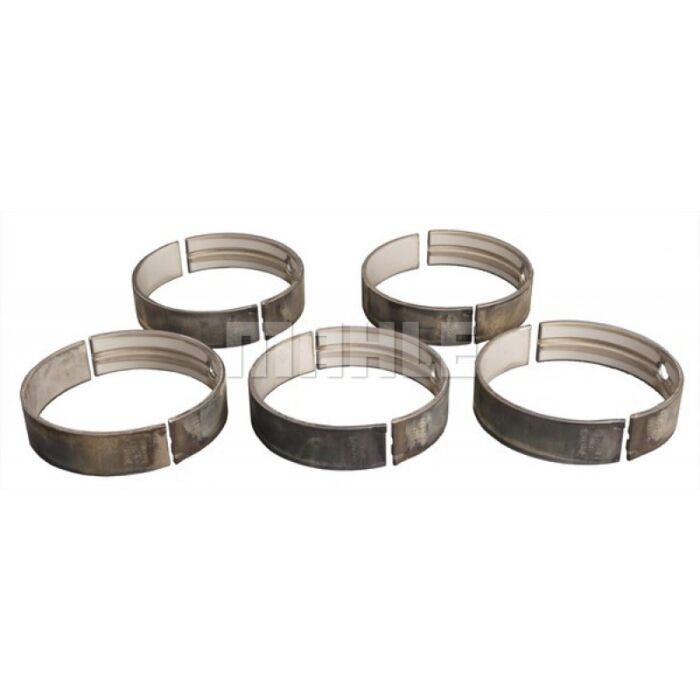

Main Bearings Race Series 01-11 Chevy 6.6L Duramax
Product Description
Details
MS-2218H-STD
Specifications:
| Component No. | MB-3776H |
| Positions | 1-2-3-4-5 |
| Material | TM-77 |
| Min. Std. Shaft Diameter | 3.1459IN 79.9059MM |
| Max. Std. Shaft Diameter | 3.1466IN 79.9236MM |
| Min. Vert. Oil Clearance | 0.0009IN 0.0229MM |
| Max. Vert. Oil Clearance | 0.0033IN 0.0838MM |
| Max. Wall | 0.0994IN 2.5248MM |
| Min. Brg. O.D. or Housing Bore | 3.3464IN 84.9986MM |
| Max. Brg. O.D. or Housing Bore | 3.3472IN 85.0189MM |
| Component No. | 0.8200IN 20.8280MM |
Complete Set of 8 | Does not Include Thrust Washer Set
MS-2218HX
Specifications:
| Component No. | MB-3776HX |
| Positions | 1-2-3-4-5 |
| Material | TM-77 |
| Min. Std. Shaft Diameter | 3.1459IN 79.9059MM |
| Max. Std. Shaft Diameter | 3.1466IN 79.9236MM |
| Min. Vert. Oil Clearance | 0.0019IN 0.0483MM |
| Max. Vert. Oil Clearance | 0.0043IN 0.1092MM |
| Max. Wall | 0.0989IN 2.5121MM |
| Min. Brg. O.D. or Housing Bore | 3.3465IN 85.0011MM |
| Max. Brg. O.D. or Housing Bore | 3.3472IN 85.0189MM |
| Component No. | 0.8200IN 20.8280MM |
Complete Set of 8 | Does not Include Thrust Washer Set
MS-2218H-026
Specifications:
| Component No. | MB-3776H |
| Positions | 1-2-3-4-5 |
| Material | TM-77 |
| Min. Std. Shaft Diameter | 3.1459IN 79.9059MM |
| Max. Std. Shaft Diameter | 3.1466IN 79.9236MM |
| Min. Vert. Oil Clearance | 0.0009IN 0.0229MM |
| Max. Vert. Oil Clearance | 0.0033IN 0.0838MM |
| Max. Wall | 0.0994IN 2.5248MM |
| Min. Brg. O.D. or Housing Bore | 3.3464IN 84.9986MM |
| Max. Brg. O.D. or Housing Bore | 3.3472IN 85.0189MM |
| Component No. | 0.8200IN 20.8280MM |
Complete Set of 8 | Does not Include Thrust Washer Set
MS-2218H-25
Specifications:
| Component No. | MB-3776H |
| Positions | 1-2-3-4-5 |
| Material | TM-77 |
| Min. Std. Shaft Diameter | 3.1459IN 79.9059MM |
| Max. Std. Shaft Diameter | 3.1466IN 79.9236MM |
| Min. Vert. Oil Clearance | 0.0009IN 0.0229MM |
| Max. Vert. Oil Clearance | 0.0033IN 0.0838MM |
| Max. Wall | 0.0994IN 2.5248MM |
| Min. Brg. O.D. or Housing Bore | 3.3464IN 84.9986MM |
| Max. Brg. O.D. or Housing Bore | 3.3472IN 85.0189MM |
| Component No. | 0.8200IN 20.8280MM |
Complete Set of 8 | Does not Include Thrust Washer Set
