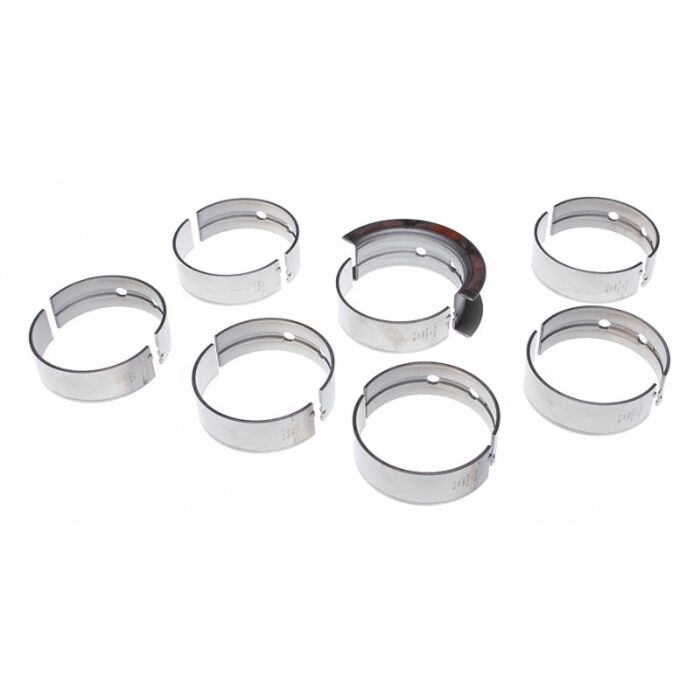

Main Bearings | 89-16 Dodge 5.9L & 6.7L Cummins

Zoom

Main Bearings | 89-16 Dodge 5.9L & 6.7L Cummins

Be the first to review this product

In stock

Regular Price: $87.94

Now only:
$74.50

Manufacturer: Mahle

Model: MS-2328P

Truck Applications: Dodge 1st Generation 1988-93, Dodge 12V 1994-98, Dodge 24V 1998.5-02, Dodge 24V CR 2003-07, Dodge 6.7 2007-09, Dodge 6.7L 2010-12, Dodge 6.7L 2013-2018

Shipping Weight: 2.0000

View all Mahle Clevite | Main Bearings

Email to a Friend

*Choose Bearings Size

* Required Fields

Qty

Product Description

Details

MS-1717P-STD

Specifications:

Component No.	MB-3110P	MB-3109P(F)
Positions	1-2-3-4-5-7	6
Material	TM-112	TM-112
Min. Std. Shaft Diameter	3.2674IN 82.9920MM	3.2674IN 82.9920MM
Max. Std. Shaft Diameter	3.2682IN 83.0123MM	3.2682IN 83.0123MM
Min. Vert. Oil Clearance	0.0017IN 0.0432MM	0.0017IN 0.0432MM
Max. Vert. Oil Clearance	0.0047IN 0.1194MM	0.0047IN 0.1194MM
Max. Wall	0.0970IN 2.4638MM	0.0970IN 2.4638MM
Min. Brg. O.D. or Housing Bore	3.4637IN 87.9780MM	3.4637IN 87.9780MM
Max. Brg. O.D. or Housing Bore	3.4651IN 88.0135MM	3.4651IN 88.0135MM
Component No.	1.1430IN 29.0322MM	1.4700IN 37.3380MM

Complete Set of 8

MS-1717P-25

Specifications:

Component No.	MB-3110P	MB-3109P(F)
Positions	1-2-3-4-5-7	6
Material	TM-112	TM-112
Min. Std. Shaft Diameter	3.2674IN 82.9920MM	3.2674IN 82.9920MM
Max. Std. Shaft Diameter	3.2682IN 83.0123MM	3.2682IN 83.0123MM
Min. Vert. Oil Clearance	0.0017IN 0.0432MM	0.0017IN 0.0432MM
Max. Vert. Oil Clearance	0.0047IN 0.1194MM	0.0047IN 0.1194MM
Max. Wall	0.0970IN 2.4638MM	0.0970IN 2.4638MM
Min. Brg. O.D. or Housing Bore	3.4637IN 87.9780MM	3.4637IN 87.9780MM
Max. Brg. O.D. or Housing Bore	3.4651IN 88.0135MM	3.4651IN 88.0135MM
Component No.	1.1430IN 29.0322MM	1.4700IN 37.3380MM

Complete Set of 8

MS-1717P-50

Specifications:

Component No.	MB-3110P	MB-3109P(F)
Positions	1-2-3-4-5-7	6
Material	TM-112	TM-112
Min. Std. Shaft Diameter	3.2674IN 82.9920MM	3.2674IN 82.9920MM
Max. Std. Shaft Diameter	3.2682IN 83.0123MM	3.2682IN 83.0123MM
Min. Vert. Oil Clearance	0.0017IN 0.0432MM	0.0017IN 0.0432MM
Max. Vert. Oil Clearance	0.0047IN 0.1194MM	0.0047IN 0.1194MM
Max. Wall	0.0970IN 2.4638MM	0.0970IN 2.4638MM
Min. Brg. O.D. or Housing Bore	3.4637IN 87.9780MM	3.4637IN 87.9780MM
Max. Brg. O.D. or Housing Bore	3.4651IN 88.0135MM	3.4651IN 88.0135MM
Component No.	1.1430IN 29.0322MM	1.4700IN 37.3380MM

Complete Set of 8

MS-1717P-75

Specifications:

Component No.	MB-3110P	MB-3109P(F)
Positions	1-2-3-4-5-7	6
Material	TM-112	TM-112
Min. Std. Shaft Diameter	3.2674IN 82.9920MM	3.2674IN 82.9920MM
Max. Std. Shaft Diameter	3.2682IN 83.0123MM	3.2682IN 83.0123MM
Min. Vert. Oil Clearance	0.0017IN 0.0432MM	0.0017IN 0.0432MM
Max. Vert. Oil Clearance	0.0047IN 0.1194MM	0.0047IN 0.1194MM
Max. Wall	0.0970IN 2.4638MM	0.0970IN 2.4638MM
Min. Brg. O.D. or Housing Bore	3.4637IN 87.9780MM	3.4637IN 87.9780MM
Max. Brg. O.D. or Housing Bore	3.4651IN 88.0135MM	3.4651IN 88.0135MM
Component No.	1.1430IN 29.0322MM	1.4700IN 37.3380MM

Complete Set of 8
