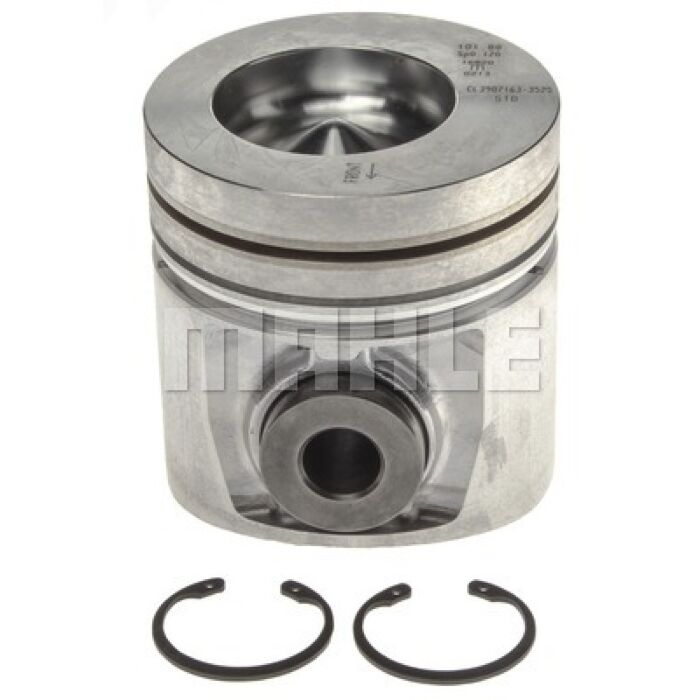

Dodge Cummins Pistons

Dodge Cummins Pistons Zoom

Dodge Cummins Pistons
Dodge Cummins Pistons
Dodge Cummins Pistons
Dodge Cummins Pistons
Dodge Cummins Pistons
Dodge Cummins Pistons
Dodge Cummins Pistons
Dodge Cummins Pistons
Dodge Cummins Pistons
Dodge Cummins Pistons
Dodge Cummins Pistons

Dodge Cummins Pistons

395.7500

In stock

Regular Price: $422.25

Now only:
$395.75

Manufacturer: Mahle
Model: 224-3525-STD
Truck Applications: Dodge 1st Generation 1988-93, Dodge 12V 1994-98, Dodge 24V 1998.5-02, Dodge 24V CR 2003-07, Dodge 6.7 2007-09, Dodge 6.7L 2010-12, Dodge 6.7L 2013-2016
Shipping Weight: 20.0000
Piston Kits | Dodge

* Required Fields

Product Description

Details

224-3525-STD

  • Related Part Number 1: S41518
  • Material: Aluminum
  • Casting Number: 102L37
  • Maximum Oversize: .040" 1.00MM
  • Bore Diameter: 4.016" 102.00MM
  • Piston Skirt Clearance: 0.0047IN
  • Measure Skirt Clearance At: 0.472" from the bottom of skirt
  • Piston Pin Diameter: 1.575" 40.00MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Reentrant Bowl
  • Recess Depth: 0.697IN
  • Recess Diameter: 2.328IN
  • Recess Volume: 43.2cc
  • Compression Height: Standard
  • Compression Distance: 2.817" 71.56MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.40MM
  • Oil Ring Groove Width 1: 4.00MM
  • Note 1: 43.2cc bowl volume
  • Note 2: OE casting # 102O18, Keystone top ring. Turbo

224-3525-020

  • Related Part Number 1: S41518
  • Material: Aluminum
  • Casting Number: 102L37
  • Maximum Oversize: .040" 1.00MM
  • Bore Diameter: 4.016" 102.00MM
  • Piston Skirt Clearance: 0.0047IN
  • Measure Skirt Clearance At: 0.472" from the bottom of skirt
  • Piston Pin Diameter: 1.575" 40.00MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Reentrant Bowl
  • Recess Depth: 0.697IN
  • Recess Diameter: 2.328IN
  • Recess Volume: 43.2cc
  • Compression Height: Standard
  • Compression Distance: 2.817" 71.56MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.40MM
  • Oil Ring Groove Width 1: 4.00MM
  • Note 1: 43.2cc bowl volume
  • Note 2: OE casting # 102O18, Keystone top ring. Turbo

224-3525

  • Related Part Number 1: S41518
  • Material: Aluminum
  • Casting Number: 102L37
  • Maximum Oversize: .040" 1.00MM
  • Bore Diameter: 4.016" 102.00MM
  • Piston Skirt Clearance: 0.0047IN
  • Measure Skirt Clearance At: 0.472" from the bottom of skirt
  • Piston Pin Diameter: 1.575" 40.00MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Reentrant Bowl
  • Recess Depth: 0.697IN
  • Recess Diameter: 2.328IN
  • Recess Volume: 43.2cc
  • Compression Height: Standard
  • Compression Distance: 2.817" 71.56MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.40MM
  • Oil Ring Groove Width 1: 4.00MM
  • Note 1: 43.2cc bowl volume
  • Note 2: OE casting # 102O18, Keystone top ring. Turbo

224-3523-STD

  • Related Part Number 1: S41518
  • Material: Aluminum
  • Casting Number: 102L37
  • Maximum Oversize: .040" 1.00MM
  • Bore Diameter: 4.016" 102.00MM
  • Piston Skirt Clearance: 0.0047IN
  • Measure Skirt Clearance At: 0.472" from the bottom of skirt
  • Piston Pin Diameter: 1.575" 40.00MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Reentrant Bowl
  • Recess Depth: 0.685IN
  • Recess Diameter: 2.520IN
  • Recess Volume: 47.1cc
  • Compression Height: Standard
  • Compression Distance: 2.817" 71.56MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.40MM
  • Oil Ring Groove Width 1: 4.00MM
  • Note 1: 47.1cc bowl volume
  • Note 2: Keystone Top ring, OE casting # 102O18

224-3523-020

  • Related Part Number 1: S41518
  • Material: Aluminum
  • Casting Number: 102L37
  • Maximum Oversize: .040" 1.00MM
  • Bore Diameter: 4.016" 102.00MM
  • Piston Skirt Clearance: 0.0047IN
  • Measure Skirt Clearance At: 0.472" from the bottom of skirt
  • Piston Pin Diameter: 1.575" 40.00MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Reentrant Bowl
  • Recess Depth: 0.685IN
  • Recess Diameter: 2.520IN
  • Recess Volume: 47.1cc
  • Compression Height: Standard
  • Compression Distance: 2.817" 71.56MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.40MM
  • Oil Ring Groove Width 1: 4.00MM
  • Note 1: 47.1cc bowl volume
  • Note 2: Keystone Top ring, OE casting # 102O18

224-3523-040

  • Related Part Number 1: S41518
  • Material: Aluminum
  • Casting Number: 102L37
  • Maximum Oversize: .040" 1.00MM
  • Bore Diameter: 4.016" 102.00MM
  • Piston Skirt Clearance: 0.0047IN
  • Measure Skirt Clearance At: 0.472" from the bottom of skirt
  • Piston Pin Diameter: 1.575" 40.00MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Reentrant Bowl
  • Recess Depth: 0.685IN
  • Recess Diameter: 2.520IN
  • Recess Volume: 47.1cc
  • Compression Height: Standard
  • Compression Distance: 2.817" 71.56MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.40MM
  • Oil Ring Groove Width 1: 4.00MM
  • Note 1: 47.1cc bowl volume
  • Note 2: Keystone Top ring, OE casting # 102O18

224-3513-STD

  • Related Part Number 1:S41518
  • Material: Aluminum
  • Casting Number: 102L55
  • Maximum Oversize: .040"" 1.00MM
  • Bore Diameter: 4.016" 102.00MM
  • Piston Skirt Clearance: 0.0047IN
  • Measure Skirt Clearance At: 0.472" from the bottom of skirt
  • Piston Pin Diameter: 1.575" 40.0MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Reentrant Bowl
  • Recess Depth: 0.866IN
  • Recess Diameter: 2.019IN
  • Recess Volume: 44.5
  • Compression Height: Standard
  • Compression Distance: 2.822" 71.69MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.40MM
  • Oil Ring Groove Width 1: 4.00MM
  • Note 1: Grade B, 44.5cc bowl volume
  • Note 2: OEM casting number is 102O39

224-3513-020

  • Related Part Number 1:S41518
  • Material: Aluminum
  • Casting Number: 102L55
  • Maximum Oversize: .040"" 1.00MM
  • Bore Diameter: 4.016" 102.00MM
  • Piston Skirt Clearance: 0.0047IN
  • Measure Skirt Clearance At: 0.472" from the bottom of skirt
  • Piston Pin Diameter: 1.575" 40.0MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Reentrant Bowl
  • Recess Depth: 0.866IN
  • Recess Diameter: 2.019IN
  • Recess Volume: 44.5
  • Compression Height: Standard
  • Compression Distance: 2.822" 71.69MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.40MM
  • Oil Ring Groove Width 1: 4.00MM
  • Note 1: Grade B, 44.5cc bowl volume
  • Note 2: OEM casting number is 102O39

224-3513-040

  • Related Part Number 1:S41518
  • Material: Aluminum
  • Casting Number: 102L55
  • Maximum Oversize: .040"" 1.00MM
  • Bore Diameter: 4.016" 102.00MM
  • Piston Skirt Clearance: 0.0047IN
  • Measure Skirt Clearance At: 0.472" from the bottom of skirt
  • Piston Pin Diameter: 1.575" 40.0MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Reentrant Bowl
  • Recess Depth: 0.866IN
  • Recess Diameter: 2.019IN
  • Recess Volume: 44.5
  • Compression Height: Standard
  • Compression Distance: 2.822" 71.69MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.40MM
  • Oil Ring Groove Width 1: 4.00MM
  • Note 1: Grade B, 44.5cc bowl volume
  • Note 2: OEM casting number is 102O39

224-3355-STD

Specifications:

  • Related Part Number 1: S41518
  • Material: Aluminum
  • Casting Number: 102L55A2
  • Maximum Oversize: .040" 1.00MM
  • Bore Diameter: 4.016" 102.00MM
  • Piston Skirt Clearance: 0.0047IN
  • Measure Skirt Clearance At: 0.472 from the bottom of skirt
  • Piston Pin Diameter: 1.575" 40.00MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Center
  • Head Type Description: Reentrant Bowl
  • Recess Depth: 0.740" 18.82MM
  • Recess Diameter: 2.413IN
  • Recess Volume: 48.03cc
  • Compression Height: Standard
  • Compression Distance: 2.818" 71.6MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.40MM
  • Oil Ring Groove Width 1: 4.00MM
  • Note 1: Non-HO, Grade A
  • Note 2: Vin 6 non HO, Keystone top ring

224-3355-020

Specifications:

  • Related Part Number 1: S41518
  • Material: Aluminum
  • Casting Number: 102L55A2
  • Maximum Oversize: .040" 1.00MM
  • Bore Diameter: 4.016" 102.00MM
  • Piston Skirt Clearance: 0.0047IN
  • Measure Skirt Clearance At: 0.472 from the bottom of skirt
  • Piston Pin Diameter: 1.575" 40.00MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Center
  • Head Type Description: Reentrant Bowl
  • Recess Depth: 0.740" 18.82MM
  • Recess Diameter: 2.413IN
  • Recess Volume: 48.03cc
  • Compression Height: Standard
  • Compression Distance: 2.818" 71.6MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.40MM
  • Oil Ring Groove Width 1: 4.00MM
  • Note 1: Non-HO, Grade A
  • Note 2: Vin 6 non HO, Keystone top ring

224-3355-040

Specifications:

  • Related Part Number 1: S41518
  • Material: Aluminum
  • Casting Number: 102L55A2
  • Maximum Oversize: .040" 1.00MM
  • Bore Diameter: 4.016" 102.00MM
  • Piston Skirt Clearance: 0.0047IN
  • Measure Skirt Clearance At: 0.472 from the bottom of skirt
  • Piston Pin Diameter: 1.575" 40.00MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Center
  • Head Type Description: Reentrant Bowl
  • Recess Depth: 0.740" 18.82MM
  • Recess Diameter: 2.413IN
  • Recess Volume: 48.03cc
  • Compression Height: Standard
  • Compression Distance: 2.818" 71.6MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.40MM
  • Oil Ring Groove Width 1: 4.00MM
  • Note 1: Non-HO, Grade A
  • Note 2: Vin 6 non HO, Keystone top ring

224-3672-STD

Specifications:

  • Material: Aluminum
  • Bore Diameter: 4.016" 102.00MM
  • Piston Length: 4.141IN
  • Piston Skirt Clearance: .0039IN
  • Measure Skirt Clearance At: 0.591" from the bottom of skirt
  • Piston Pin Diameter: 1.5748IN
  • Head Type Description: Bowl
  • Valve Reliefs: None
  • Recess Depth: .732IN
  • Recess Diameter: 2.755IN
  • Compression Distance: 2.811IN
  • Compression Ratio: 17.1:1
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.40MM
  • Oil Ring Groove Width 1: 4.00MM
  • Note 1: 17.1:1 CR

224-3672-020

Specifications:

  • Material: Aluminum
  • Bore Diameter: 4.016" 102.00MM
  • Piston Length: 4.141IN
  • Piston Skirt Clearance: .0039IN
  • Measure Skirt Clearance At: 0.591" from the bottom of skirt
  • Piston Pin Diameter: 1.5748IN
  • Head Type Description: Bowl
  • Valve Reliefs: None
  • Recess Depth: .732IN
  • Recess Diameter: 2.755IN
  • Compression Distance: 2.811IN
  • Compression Ratio: 17.1:1
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.40MM
  • Oil Ring Groove Width 1: 4.00MM
  • Note 1: 17.1:1 CR

224-3672-040

Specifications:

  • Material: Aluminum
  • Bore Diameter: 4.016" 102.00MM
  • Piston Length: 4.141IN
  • Piston Skirt Clearance: .0039IN
  • Measure Skirt Clearance At: 0.591" from the bottom of skirt
  • Piston Pin Diameter: 1.5748IN
  • Head Type Description: Bowl
  • Valve Reliefs: None
  • Recess Depth: .732IN
  • Recess Diameter: 2.755IN
  • Compression Distance: 2.811IN
  • Compression Ratio: 17.1:1
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.40MM
  • Oil Ring Groove Width 1: 4.00MM
  • Note 1: 17.1:1 CR

224-3673-STD

Clevite is an American brand with one of the oldest pedigrees and supplies pistons, assemblies, cylinder liners, bearings and valves for American commercial vehicles as well as construction and agricultural equipment applications.

224-3673-020

Clevite is an American brand with one of the oldest pedigrees and supplies pistons, assemblies, cylinder liners, bearings and valves for American commercial vehicles as well as construction and agricultural equipment applications.

224-3673-040

Clevite is an American brand with one of the oldest pedigrees and supplies pistons, assemblies, cylinder liners, bearings and valves for American commercial vehicles as well as construction and agricultural equipment applications.

224-3732-STD

Specifications:

  • Material: Aluminum
  • Bore Diameter: 4.213" 107.00MM
  • Piston Length: 4.0630" 103.2002MM
  • Piston Skirt Clearance: 0.0047IN
  • Measure Skirt Clearance At: 0.591" from the bottom of skirt
  • Piston Pin Diameter: 1.5748" 40MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Bowl
  • Recess Depth: 0.7205" 18.3007MM
  • Recess Diameter: 2.880" 73.1520MM
  • Recess Volume: 51.08
  • Compression Distance: 2.732" 69.4MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.50MM
  • Oil Ring Groove Width 1: 3.50MM

224-3732-020

Specifications:

  • Material: Aluminum
  • Bore Diameter: 4.213" 107.00MM
  • Piston Length: 4.0630" 103.2002MM
  • Piston Skirt Clearance: 0.0047IN
  • Measure Skirt Clearance At: 0.591" from the bottom of skirt
  • Piston Pin Diameter: 1.5748" 40MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Bowl
  • Recess Depth: 0.7205" 18.3007MM
  • Recess Diameter: 2.880" 73.1520MM
  • Recess Volume: 51.08
  • Compression Distance: 2.732" 69.4MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.50MM
  • Oil Ring Groove Width 1: 3.50MM

Reviews

Product Tags

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.
