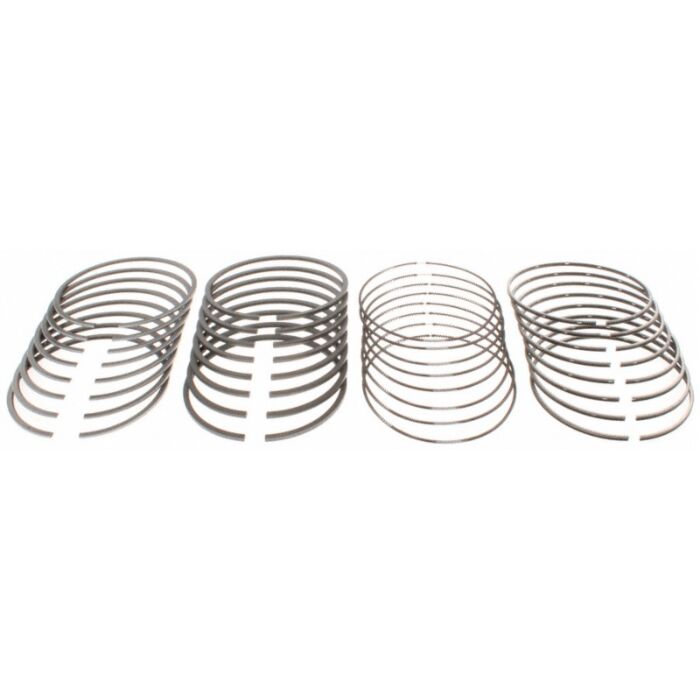

Duramax Piston Rings

Duramax Piston Rings Zoom

Duramax Piston Rings

Duramax Piston Rings

242.7500

In stock

Regular Price: $357.76

Now only:
$242.75

Manufacturer: Mahle
Model: 41909-STD
Truck Applications: Chevy/GMC Duramax 2001-04 LB7, Chevy/GMC Duramax 2004.5-05 LLY, Chevy/GMC Duramax 2006-07 LBZ, Chevy/GMC Duramax 2007.5-10 LMM, Chevy/GMC Duramax 2011-17 LML/LGH
Shipping Weight: 4.0000
Piston Rings | Chevy

* Required Fields

Product Description

Details

41909-STD

Specifications:

Cyl. Diameter Ring Width Ring Wall Qty.
4.0550"
103.00mm		 0.1181"
3.00mm		 0.1582"
4.02mm		 Cm Ring Type: RFK-18PF
Facing: Plasma-Moly
Material: Ductile Iron		 8
4.0550"
103.00mm		 5/64"
2.00mm		 0.1779"
4.52mm		 Cm Ring Type: BT-10UF
Facing: Chrome
Material: Cast Iron		 8
4.0550"
103.00mm		 0.1177"
3.00mm		 0.1270"
3.23mm		 Oil Ring Type: MCL-42NGRW
Facing: Gas Nitride
Material: Stainless Steel		 8
4.0550"
103.00mm		 0.1181"
3.00mm		 Oil Ring Type: CW-42VGH
Facing: Chrome
Material: Stainless Steel		 8
(Complete Set of 8)

41909-020

Specifications:

Cyl. Diameter Ring Width Ring Wall Qty.
4.0550"
103.00mm		 0.1181"
3.00mm		 0.1582"
4.02mm		 Cm Ring Type: RFK-18PF
Facing: Plasma-Moly
Material: Ductile Iron		 8
4.0550"
103.00mm		 5/64"
2.00mm		 0.1779"
4.52mm		 Cm Ring Type: BT-10UF
Facing: Chrome
Material: Cast Iron		 8
4.0550"
103.00mm		 0.1177"
3.00mm		 0.1270"
3.23mm		 Oil Ring Type: MCL-42NGRW
Facing: Gas Nitride
Material: Stainless Steel		 8
4.0550"
103.00mm		 0.1181"
3.00mm		 Oil Ring Type: CW-42VGH
Facing: Chrome
Material: Stainless Steel		 8
(Complete Set of 8)

41909-040

Specifications:

Cyl. Diameter Ring Width Ring Wall Qty.
4.0550"
103.00mm		 0.1181"
3.00mm		 0.1582"
4.02mm		 Cm Ring Type: RFK-18PF
Facing: Plasma-Moly
Material: Ductile Iron		 8
4.0550"
103.00mm		 5/64"
2.00mm		 0.1779"
4.52mm		 Cm Ring Type: BT-10UF
Facing: Chrome
Material: Cast Iron		 8
4.0550"
103.00mm		 0.1177"
3.00mm		 0.1270"
3.23mm		 Oil Ring Type: MCL-42NGRW
Facing: Gas Nitride
Material: Stainless Steel		 8
4.0550"
103.00mm		 0.1181"
3.00mm		 Oil Ring Type: CW-42VGH
Facing: Chrome
Material: Stainless Steel		 8
(Complete Set of 8)

42160-STD

Specifications:

Cyl. Diameter Ring Width Ring Wall Qty.
4.0551"
103.00mm		 0.1181"
3.00mm		 0.1516"
3.85mm		 Cm Ring Type: RF-12NG
Facing: Gas Nitride
Material: Stainless Steel		 8
4.0550"
103.00mm		 5/64"
2.00mm		 0.1779"
4.52mm		 Cm Ring Type: BT-10UF
Facing: Chrome
Material: Cast Iron		 8
4.0550"
103.00mm		 0.1177"
3.00mm		 0.1270"
3.23mm		 Oil Ring Type: MCL-42NGRW
Facing: Gas Nitride
Material: Stainless Steel		 8
4.0550"
103.00mm		 0.1181"
3.00mm		 Oil Ring Type: CW-42VGH
Facing: Chrome
Material: Stainless Steel		 8

42160-020

Specifications:

Cyl. Diameter Ring Width Ring Wall Qty.
4.0551"
103.00mm		 0.1181"
3.00mm		 0.1516"
3.85mm		 Cm Ring Type: RF-12NG
Facing: Gas Nitride
Material: Stainless Steel		 8
4.0550"
103.00mm		 5/64"
2.00mm		 0.1779"
4.52mm		 Cm Ring Type: BT-10UF
Facing: Chrome
Material: Cast Iron		 8
4.0550"
103.00mm		 0.1177"
3.00mm		 0.1270"
3.23mm		 Oil Ring Type: MCL-42NGRW
Facing: Gas Nitride
Material: Stainless Steel		 8
4.0550"
103.00mm		 0.1181"
3.00mm		 Oil Ring Type: CW-42VGH
Facing: Chrome
Material: Stainless Steel		 8

42160-040

Specifications:

Cyl. Diameter Ring Width Ring Wall Qty.
4.0551"
103.00mm		 0.1181"
3.00mm		 0.1516"
3.85mm		 Cm Ring Type: RF-12NG
Facing: Gas Nitride
Material: Stainless Steel		 8
4.0550"
103.00mm		 5/64"
2.00mm		 0.1779"
4.52mm		 Cm Ring Type: BT-10UF
Facing: Chrome
Material: Cast Iron		 8
4.0550"
103.00mm		 0.1177"
3.00mm		 0.1270"
3.23mm		 Oil Ring Type: MCL-42NGRW
Facing: Gas Nitride
Material: Stainless Steel		 8
4.0550"
103.00mm		 0.1181"
3.00mm		 Oil Ring Type: CW-42VGH
Facing: Chrome
Material: Stainless Steel		 8
